Paragon Fusion 8 Kiln
Contact for Price
Contact for Quote
- Model #: PARAGON-FUSION8
Most products ship within 1 business day. Learn More

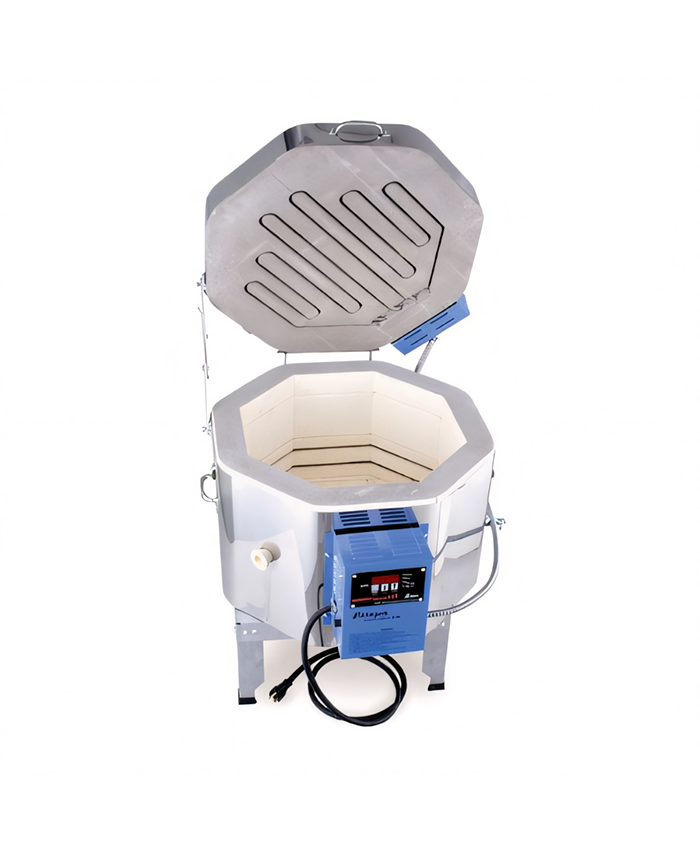

Paragon Fusion 8 Kiln
Includes lid safety switch which turns off power to the heating elements when the lid is raised. The controller remains powered. The switch turns the power to the elements back on when the lid is closed.
Paragon’s new Fusion-series digital hot glass kilns are packed with exciting features. They come in 6, 7, 8 and 10-sided versions. The Fusion-8 is the 8-sided version.
The Fusion-series lid elements use a new element groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins.
A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.
Includes lid safety switch which turns off power to the heating elements when the lid is raised. The controller remains powered. The switch turns the power to the elements back on when the lid is closed.
The digital Sentry Xpress 3 key controller comes standard on all Fusion-series kilns. Control both heating and cooling with simple 3-key operation.
The reliable Sentry Xpress 3-key controller is packed with features. It includes two modes: Single Speed and 8-segment Ramp-Hold.
Features:
Specifications:
- Digital Sentry Xpress with 8 Segment Ramp-Hold, Skip Segment & Program Review.
- Heating elements in top of all models.
- The element groove eliminates element pins.
- Heating elements in the sidewalls of the Fusion-8.
- ¼” heavy duty sheathed Type-K thermocouple.
- 2 ½” insulating refractory firebrick in walls and bottom; 3” firebrick lid.
- Lock-in lid support.
- Full-formed galvanized steel base.
- Louvered switch box, heavy duty wiring.
- Tapered peephole with plug for a wide view.
| Max. Temperature | 1700 F 926 C |
Voltage | 240 |
|---|---|---|---|
| Amps | 20 | Hertz | 60 |
| Phase | 1 | Sides | 8 |
| Watts | 4800 | Chamber Volume | 1.59 cu. ft 45.02 L |
| Nema | 6-20P | Chamber Diameter | 17.5" 445mm |
| Breaker Size | 20 | Chamber Depth | 11" 280mm |
| Circuit Wire Size | 12 gauge | Outer Size | 25.00W x 28.50D x 25.50H Inches 635W x 724D x 648H mm |
|
TUV tested to CSA and UL Standard 499 |
Yes | Ship Size | 30.50W x 30.50D x 25.00H Inches 775W x 775D x 635H mm |
| CE | No | Ship Weight | 158 lbs 71.67 kg |
| Control Type | Sentry Digital 3-key Glass Control |
